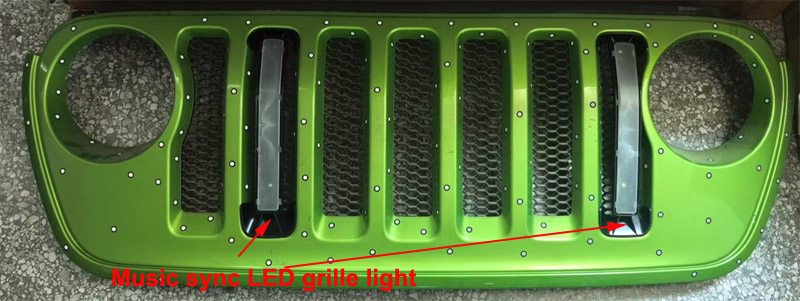

What issues will need to consider when installing music sync led grille lights inside the grille of a jeep

Some important issues must be considered before a music synced led grille light is installed into front grille slot of a jeep, such as balancing electrical safety, environmental protection, lighting performance and thermal management.

The sync module/controller contains sensitive control ic inside the led grille light. Install it in a waterproof control enclosure inside the engine bay away from extreme heat sources, or extend the wiring harness to keep the main controller inside the cabin.

The area directly behind a Jeep grille sits in front of the radiator and condenser, exposing components to ambient temperatures exceeding 90°C (194°F). Ensure the LED grille lights, harness wire, and adhesive backing are high-temperature rated.

Avoid solid mounting plates or oversized pod brackets that obstruct radiator airflow, which can trigger engine overheating under heavy load crawling or off-road adventure.

The front grille component takes direct hits from rain, mud, highway spray, and pressure washers. Adopt heat-shrink tubing over all solder joints and apply dielectric grease to waterproof plug connectors to prevent corrosion from moisture and road salt.

Always install an inline fuse (typically 5A–15A depending on draw) close to the battery terminal to protect against short circuits.

Wire the main power relay to an ignition-switched source or an auxiliary switch panel. Avoid direct-to-battery wiring without a shut-off switch to prevent passive battery drain when the vehicle is off.

Jeep engine bays experience heavy vibration and off-road tests. Secure all wiring with UV-resistant zip ties, split-loom tubing, and mechanical wire clamps rather than relying on double-sided tape alone.

In most countries, Most laws strictly prohibit forward-facing red, blue, or flashing strobe lights on public roads, the two colors are often reserved for public security or emergency rescue.

Remember to keep music-sync dynamic modes and multi-color patterns off while driving on public highways; use static white/amber or keep them switched off until you drive out of the town.
